PEDIATRIC ADVANCED LIFE SUPPORT SIMULATOR

MODEL CODE:  ST/151 & ST/151+

Download Brochure
Enquire now

Product details

General Application
  1. The simulator can be voice-activated through the control panel for realistic anamnesis practice.

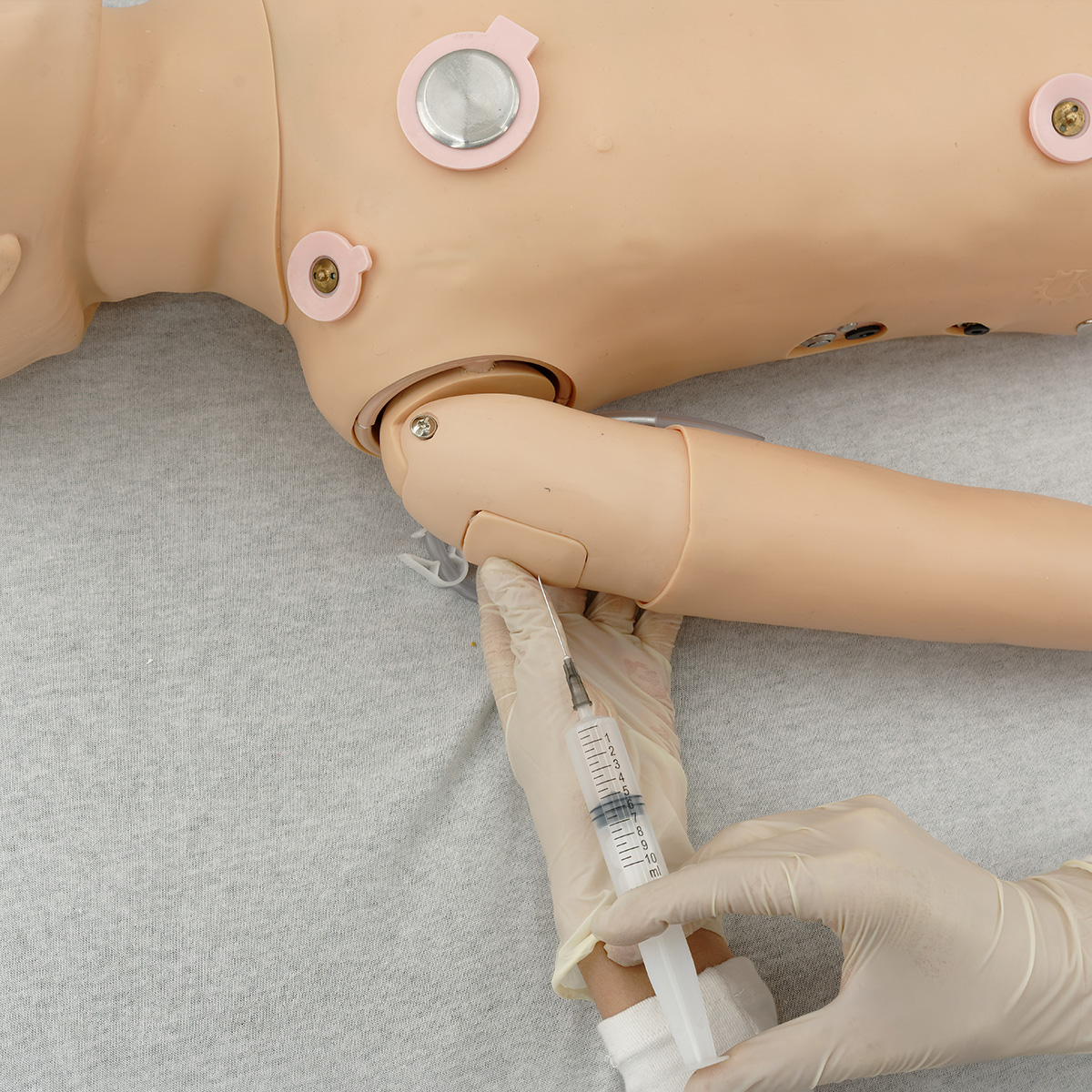

  2. Bilateral IV puncture, injection, transfusion, and blood drawing procedures through the basilic and cephalic veins in the anterior forearm and the dorsal surface of the hand.
  3. IM injection into the deltoid muscle of the upper arm.

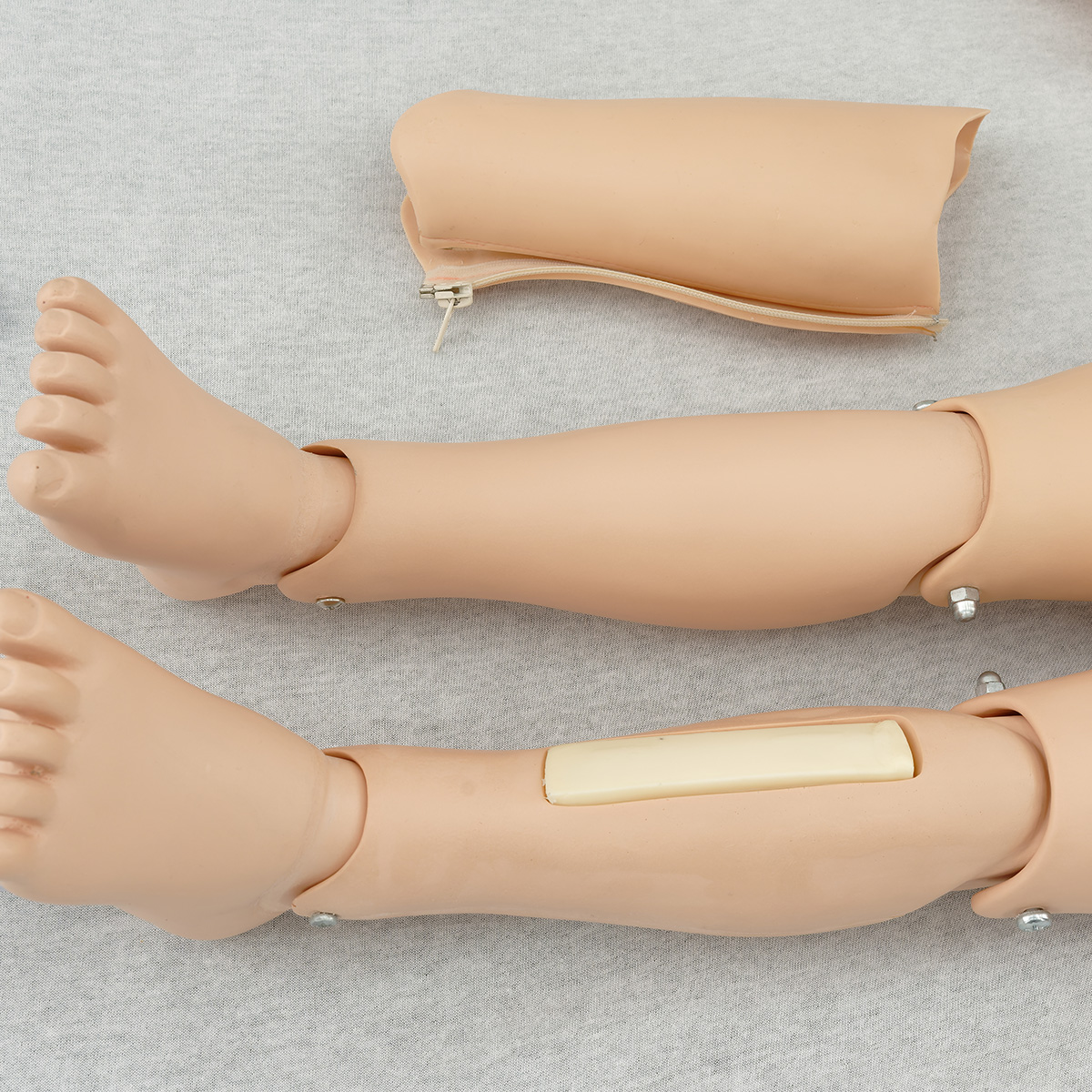

  4. Intraosseous infusion (IO) procedure on the left leg.
Airway Management

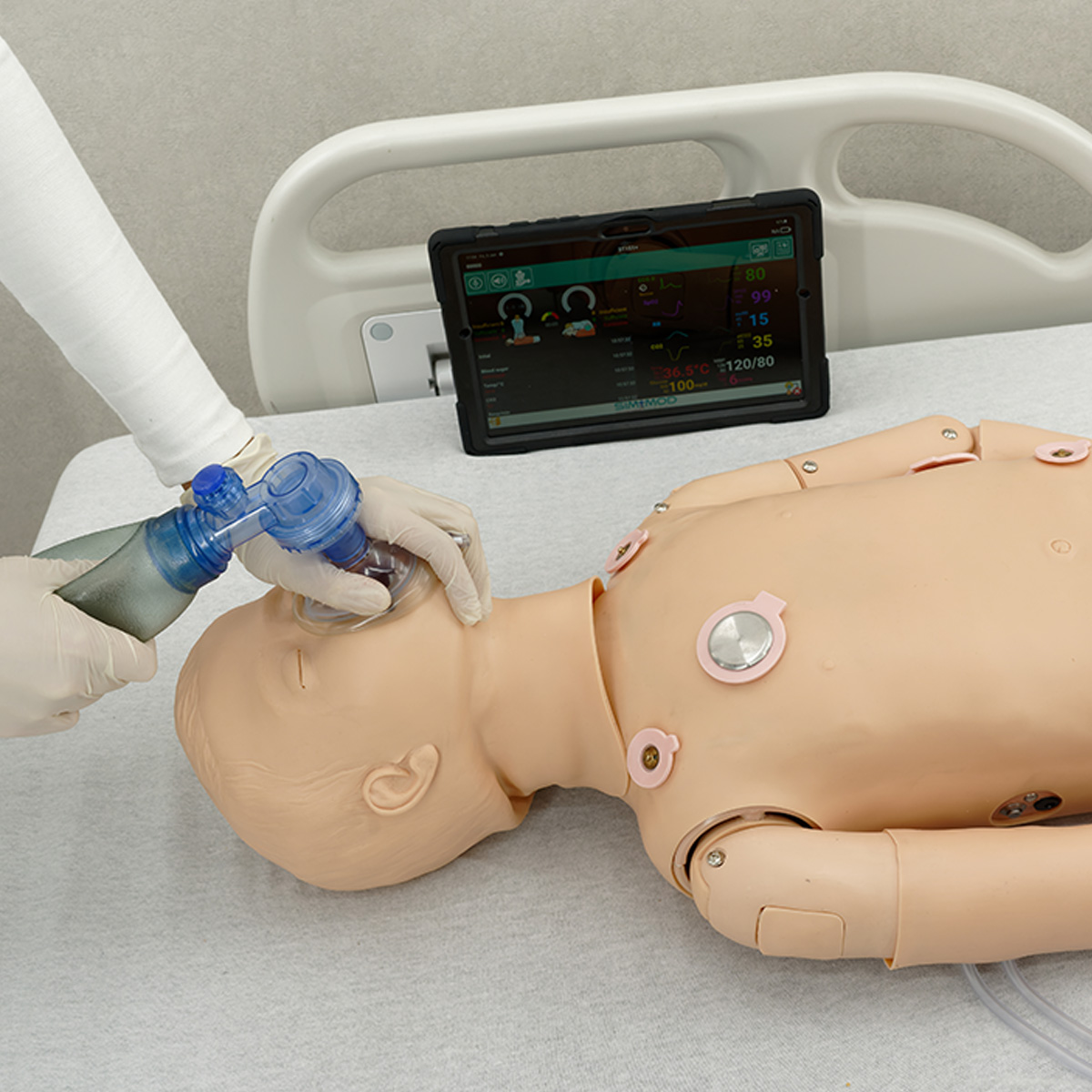

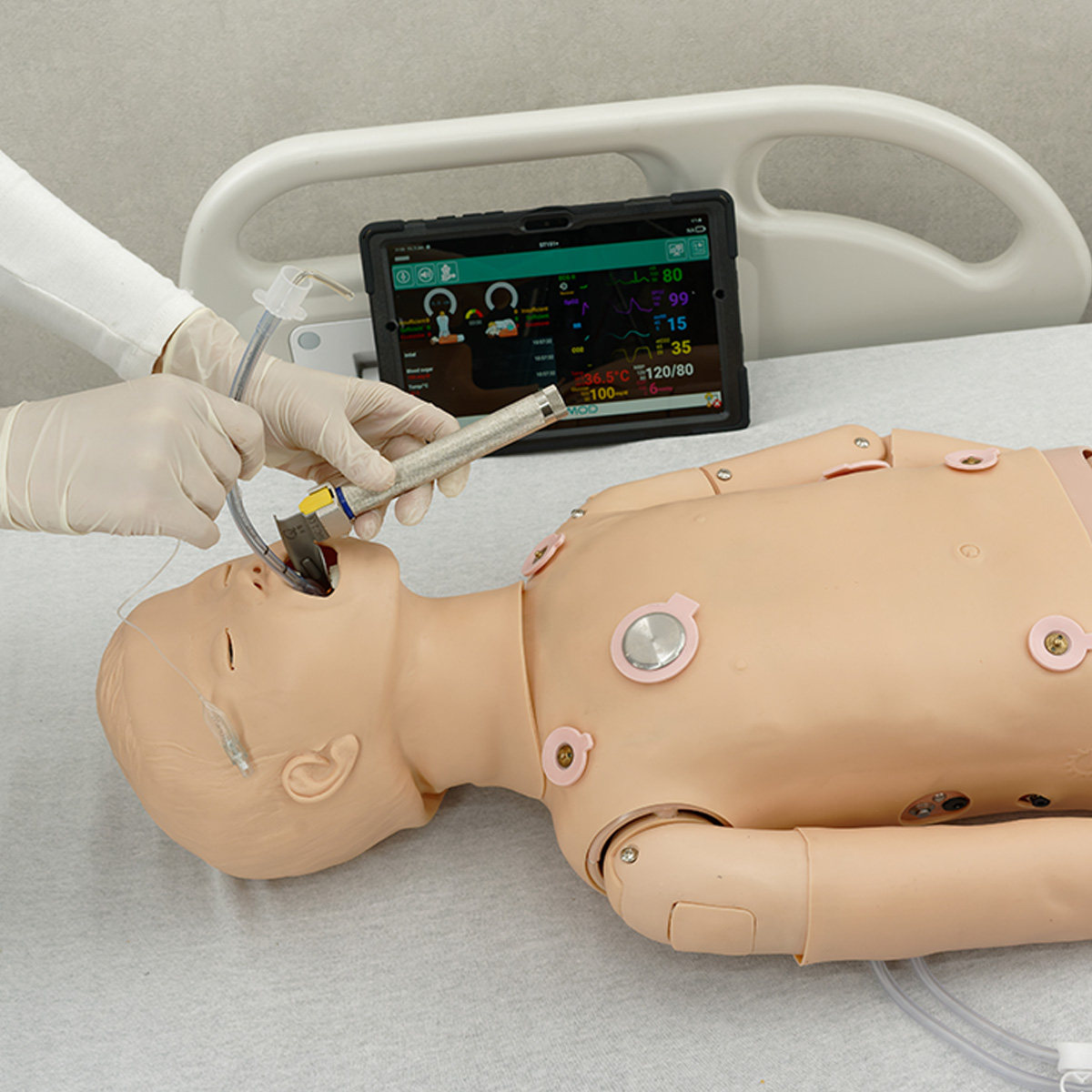

  1. Oral and nasal endotracheal intubation.
  2. LMA, LTA, and Combitube applications.
  3. During endotracheal intubation, the control panel monitors the correct placement of the endotracheal tube within the trachea while detecting accidental insertion into the right bronchus or esophagus.

Features and tech specs

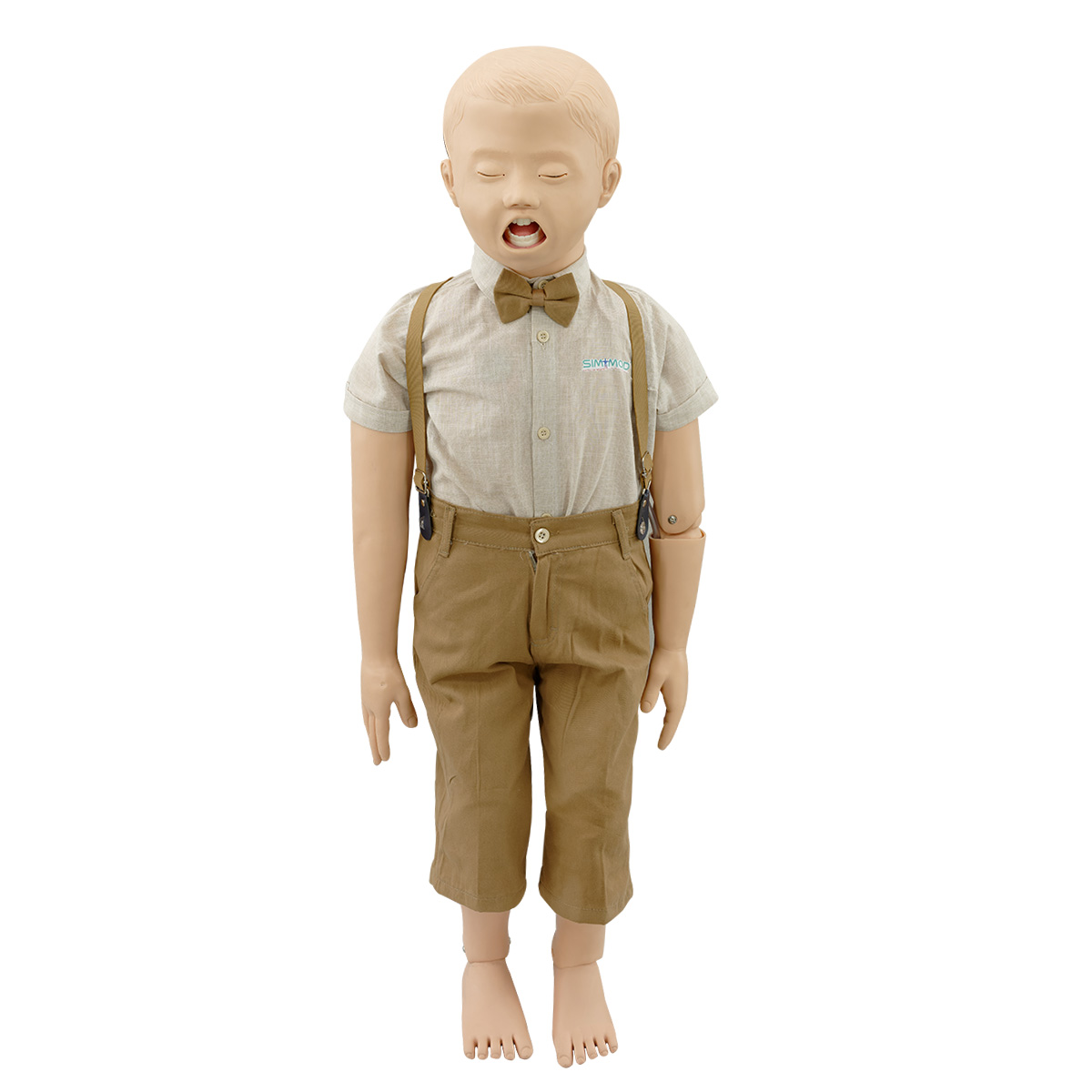

KEY FEATURES 5-Year-Old Child

6 hours of battery life

Rechargeable Wireless control

7”/10” tablet provided as control panel

Articulated joints in the neck, jaw, shoulder, hip, and knee for easy mobility

Anatomical features such as oral cavity, tongue, teeth, glottis, epiglottis, trachea, esophagus, right and left lungs, and stomach

One-way valve system that ensures the air given to the manikin flows in a single direction, effectively preventing any backflow

A steel spring system designed to provide realistic chest compression during CPR while preventing collapse during application
